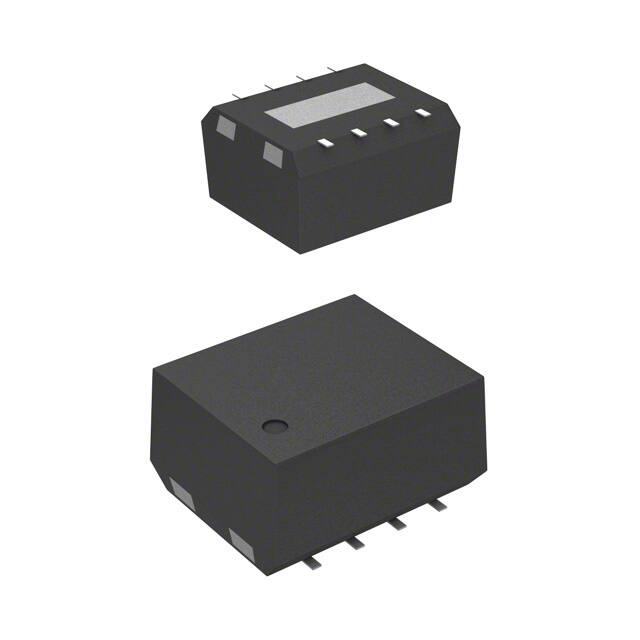

Factory Lead Time

10 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

8-SMD Module

Number of Pins

8

Weight

1.1g

Operating Temperature

-40°C~100°C

Packaging

Tube

Series

ECONOLINE R1S (1W)

Size / Dimension

0.50Lx0.42W x 0.28 H 12.8mmx10.7mmx7.0mm

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Type

Isolated Module

Applications

ITE (Commercial)

Max Power Dissipation

1W

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

255

Number of Functions

1

Terminal Pitch

2.54mm

Depth

10.7mm

Time@Peak Reflow Temperature-Max (s)

5

Pin Count

8

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

78%

Voltage - Isolation

1kV

Voltage - Input (Max)

5.5V

Output Voltage

5V

Max Output Current

200mA

Voltage - Input (Min)

4.5V

Input Voltage-Nom

5V

Trim/Adjustable Output

NO

Output Current

200mA

Output Power

1W

Max Output Voltage

5V

Total Power Output-Max

1W

Nominal Input Voltage

5V

Isolation

Isolated

Features

SCP

Height

6.7mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
